TRANNY / REAR DIFF PARTS
Wolf Creek Racing has developed a CV axle kit that easily bolts on in place of your standard halfshafts for 510's, 610's and Z-cars. |
We now stock Beta Motorsports Subie STi R180 Side Axles:
Differential side axles that allow the installation of a Subaru WRX STi R180 LSD differential into a Datsun S30 or 510 using the stock Ujoint halfshafts or WCR CV Axle kit. Custom machined out of 4340 billet and heat treated to a hard Rockwell and then Cryo-Treated, these shafts have the Subaru 27 spline axle and the standard Datsun halfshaft flange. Supplied without the press in bolts and sold in pairs. Here's the original production thread on HybridZ.org: http://forums.hybridz.org/index.php/topic/78123-subaru-wrx-sti-r180-side-axles
Subaru WRX STi R180 rear differentials:
2004 3.90 ratio Clutch type LSD
2005 3.90 ratio Clutch type LSD
2006 3.545 ratio Clutch type LSD
2007 3.545 ratio Torsen LSD
2008 3.545 ratio Torsen LSD
2009 3.545 ratio Torsen LSD
2010 3.545 ratio Torsen LSD
2011 3.545 ratio Torsen LSD
2012 3.545 ratio Torsen LSD
2013 3.545 ratio Torsen LSD
2014 3.545 ratio Torsen LSD
********************** THIS IS BY NO MEANS A PERFECT/COMPREHENSIVE LIST **********************
Use at your own risk, but this is the best we have been able to attain over the years and we feel it is correct.
Like all R180 diffs from late 70's to today, they are 115mm ID Ring Gear and will have a large "K" cast in
the top of the case, just like Nissan diffs. We swap the Torsen centers into Nissan cased gear pairs to obtain
what ever gear combination we need like 4.11, 4.38 and 4.63.
This above listing is for USDM Subie STi models.
Japan, OZ, Europe and possibly Canadian models may or may not match this info.
R200 Side Stubs are available if needed for your R200 conversion (OEM Nissan - used)................$200/pair

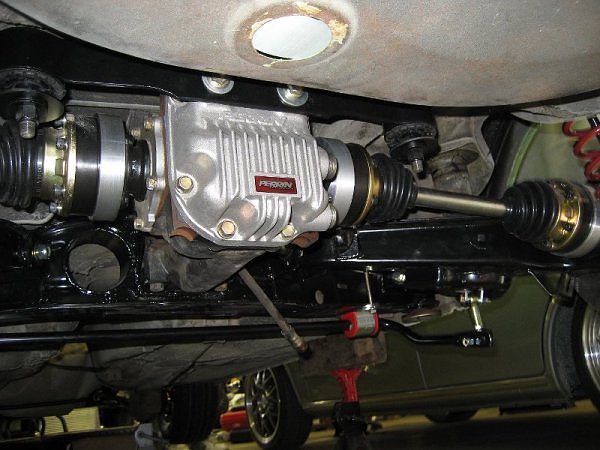

CV Axle Kit installed in PL510

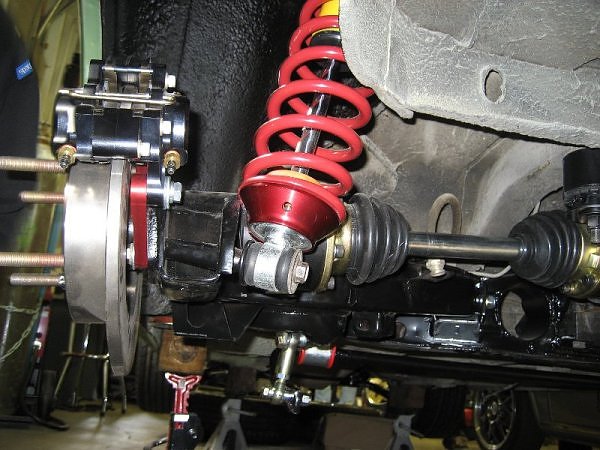

CV Axle Kit Installed in Z-car

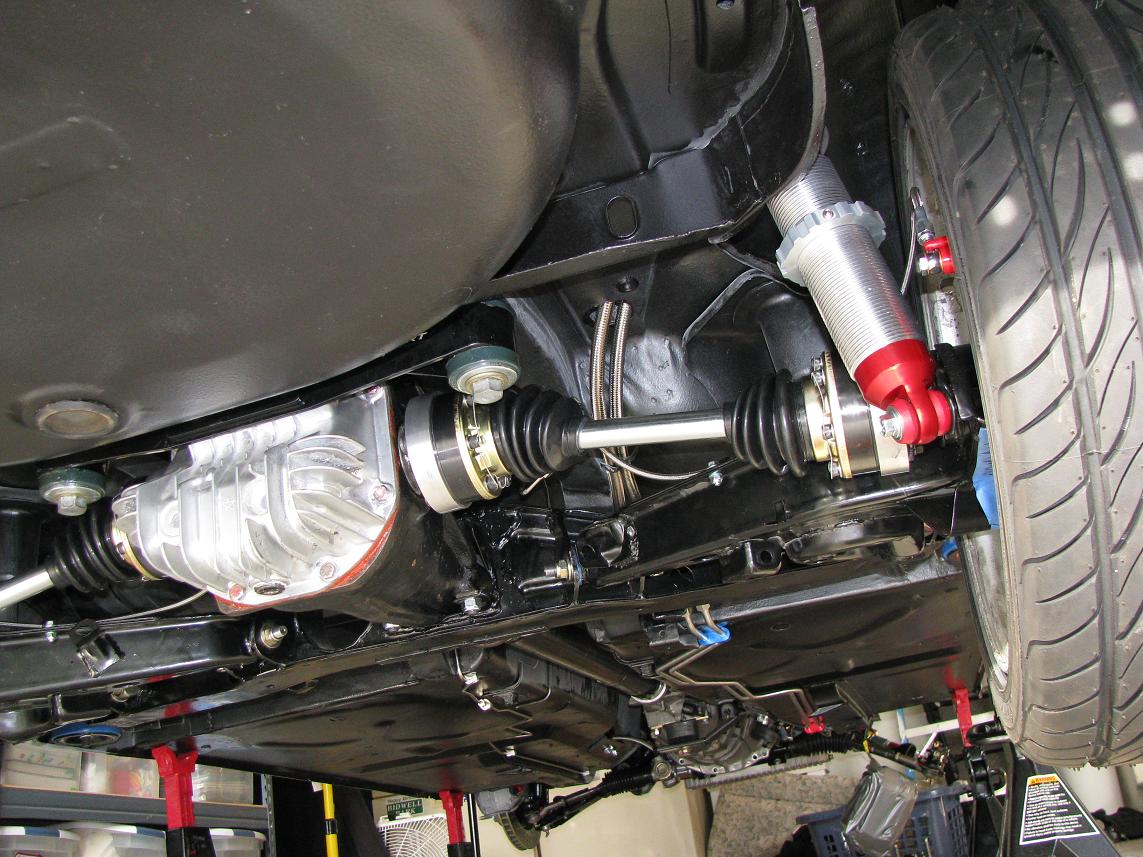

CV Axle Kit installed in PL510 W/R200 Diff
